noisypeak one
Pocket-size high-performance Intel® Core™ based encoder
Platform configuration:
Intel® NUC Kit NUC6i5SYH
Intel® Core i5™ i5-6260U processor (1.9 to 2.8 GHz turbo, Dual Core, 4 MB Cache, 15W TDP)
Integrated Intel Iris Pro Graphics 540 (GT3e)
RAM Corsair CMSO4GX4M1A2133C15 (2x4 Gb DDR4 2133 MHz)
SSD INTEL SSDSCKJW120H6
Windows 10 Pro
Video driver version 15.40.25.4463
BIOS version SYSKLi35.86A.0042.2016.0409.1246
Develop Enterprise-Grade Media Solutions for High Performance and Quality
Intel® Media Server Studio can help developers of software-based media solutions streamline development cycles, improve performance and quality, reduce costs, and keep up with changing media formats and distribution infrastructures.
Develop media solutions and optimize applications to maximize high performance and quality
Accelerate the transition to 4K and HEVC
Reduce infrastructure costs with high-density video transcoding
Cut product time to market, writing once and running anywhere, with forward and backward compatibility
FullHD / H.264
| Transcoding parameters | |||
| Parameter | Value | ||
| Stream 1 | Stream 2 | Stream 3 | |
| Resolution | 720x576 |
1440x720 | 1920x1080 |
| Bitrate | 800 | 2000 | 4500 |
| FPS | 30 | ||
| Optimization | TU7 – best speed | ||
| Codec profile | High | ||
| Codec level | 4.1 | ||
| Rate control | CBR | ||
| Slice count | auto | ||
| GOP length | 120 | ||
| B-frames count | 2 | ||
| IDR interval | auto | ||
| Reference frames number | 2 | ||
| Look Ahead | Disabled | ||
| Aspect Ration | Square pixel, dynamic letterboxing | ||
| Deinterlace | Disabled | ||
| Hardware acceleration | Enabled | ||
| Audio | |||
| Codec | AACPlus | ||
| Sample rate | 48000 Hz | ||
| Bitrate | 64 kbit/sec | ||
Testing file:
http://jell.yfish.us/media/jellyfish-5-mbps-hd-h264.mkv (5 Mbps, 1920x1080, H.264 High 4.0).
H.264 results summary:
The system is able to transcode 4 Full HD inputs with 3 bitrates outputs. In total 12 output streams in HLS or DASH.
FullHD / HEVC
| Transcoding parameters | |||
| Parameter | Value | ||
| Stream 1 | Stream 2 | Stream 3 | |
| Resolution | 720x576 |
1440x720 | 1920x1080 |
| Bitrate | 600 | 1300 | 2500 |
| FPS | 30 | ||
| Optimization | TU7 – best speed | ||
| Codec profile | Main | ||
| Codec level | 4.1 | ||
| Rate control | CBR | ||
| Slice count | auto | ||
| GOP length | 100 | ||
| IDR interval | auto | ||
| Reference frames number | 1 | ||
| Look Ahead | Disabled | ||
| Aspect Ration | Square pixel, dynamic letterboxing | ||
| Deinterlace | Disabled | ||
| Hardware acceleration | Enabled | ||
| Audio | |||
| Codec | AACPlus | ||
| Sample rate | 48000 Hz | ||
| Bitrate | 64 kbit/sec | ||
Testing file:
http://jell.yfish.us/media/jellyfish-5-mbps-hd-h264.mkv (5 Mbps, 1920x1080, H.264 High 4.0).

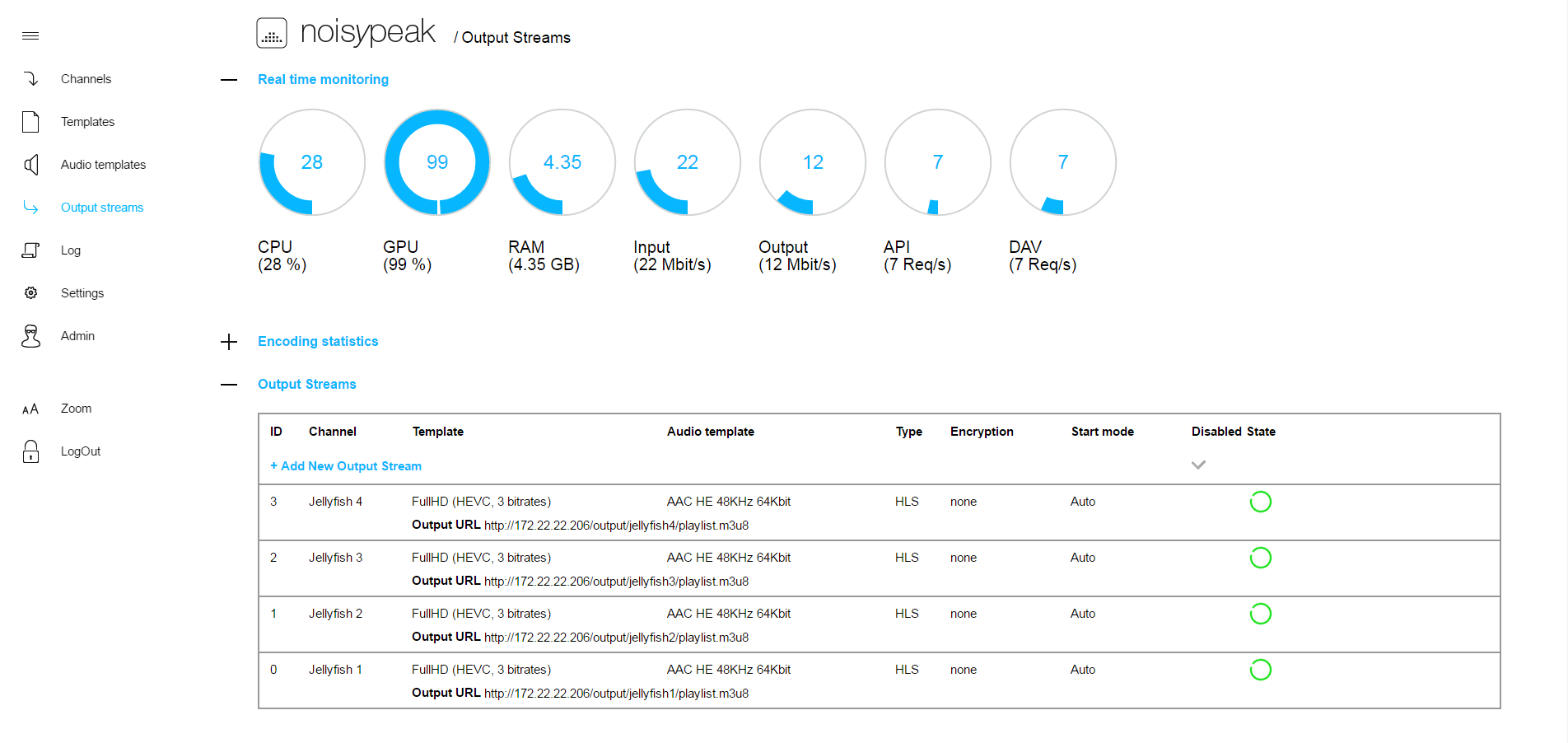

HEVC results summary:
The system is able to transcode 4 Full HD inputs with 3 bitrate outputs. In total 12 output streams in HLS or DASH.
4k / h.264
| Transcoding parameters | |
| Parameter | Value |
| Resolution | 3840x2160 |
| Bitrate | 8000 |
| FPS | 30 |
| Optimization | TU7 – best speed |
| Codec profile | High |
| Codec level | 5 |
| Rate control | CBR |
| Slice count | auto |
| GOP length | 120 |
| B-frames count | 2 |
| IDR interval | auto |
| Reference frames number | 2 |
| Look Ahead | Disabled |
| Deinterlace | Disabled |
| Hardware acceleration | Enabled |
| Audio | |
| Codec | AACPlus |
| Sample rate | 48000 Hz |
| Bitrate | 64 kbit/sec |
Testing file:
http://distribution.bbb3d.renderfarming.net/video/mp4/bbb_sunflower_2160p_30fps_normal.mp4 (8.5 Mbps, 3840x2160, H.264 High 5.1).

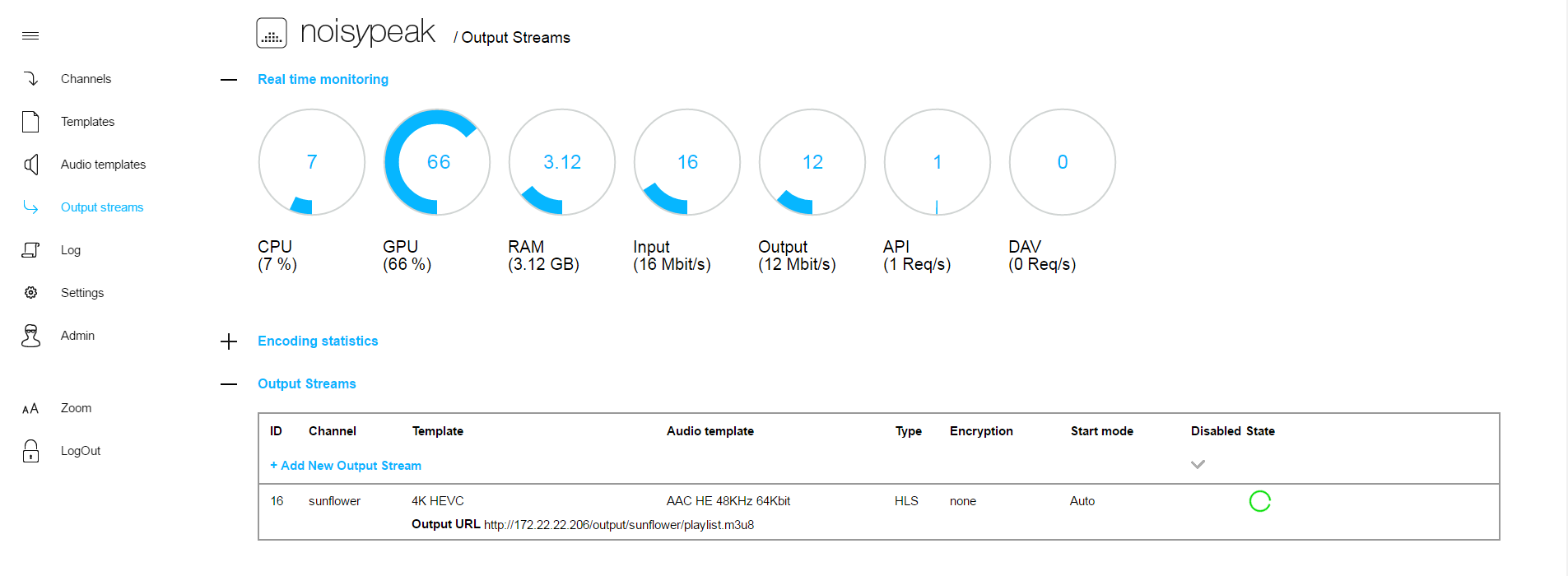

4K results summary:
The system is able to transcode H.264 to HEVC 4K in single bitate with just 60% load on GPU.
4K / Hevc
| Transcoding parameters | |
| Parameter | Value |
| Stream | |
| Resolution | 3840x2160 |
| Bitrate | 5000 |
| FPS | 30 |
| Optimization | TU7 – best speed |
| Codec profile | Main |
| Codec level | 5 |
| Rate control | CBR |
| Slice count | auto |
| GOP length | 120 |
| B-frames count | 2 |
| IDR interval | auto |
| Reference frames number | 2 |
| Look Ahead | Disabled |
| Deinterlace | Disabled |
| Hardware acceleration | Enabled |
| Audio | |
| Codec | AACPlus |
| Sample rate | 48000 Hz |
| Bitrate | 64 kbit/sec |
Testing file:
http://distribution.bbb3d.renderfarming.net/video/mp4/bbb_sunflower_2160p_30fps_normal.mp4 (8.5 Mbps, 3840x2160, H.264 High 5.1).
4K results summary:
The system is able to transcode H.265 to HEVC 4K in single bitate with just 66% load on GPU.
