Cam Series - USB & HDMI Camera/Source Selectors
Multiple Cameras in your online meetings and webcast
Online collaboration is already a communication norm – like email & cell phones. The novelty and many of the bugs are gone. It’s a valid tool. Audiences already expect a higher production value than a one camera talking head. You can achieve this with software, a multiple input computer and an operator or you can look at Inogeni.
With the Inogeni CAM series of multiple cameras selector, your meeting can be as spontaneous as you want it to be. The CAM products let you select one of four sources from the buttons or remotely. With SHARE2 you can present and narrate a PowerPoint program, cut between images of one speaker and a group, have one camera focused on an interviewer and the interviewee, present and explain a spreadsheet or a digitized radiograph, etc. With practice you can make one camera full screen and change what the other camera or source is looking at while it is off screen.
The SHARE series extend the flexibility of the CAM selectors by adding sources mixing and combining effects for a more efficient on line collaboration.
Flexible installation with local and remote control
In addition to the front buttons, you can control them via serial and Ethernet as well. In other words you can use them in a Crestron controlled room or at a remote site.
Extreme compatibility with all applications
Technically, the CAM series integrates a scaler and frame buffer to insure a smooth glitch-free switch so your collaboration program sees a single continuous data stream. Tested apps include Skype®, Quicklaunch®, Hangouts®, ZOOM®, Vidyo®, Livecast®, vMix®, etc. The best way to test your application is that if it works with a single camera, you can have more cameras with Inogeni CAM products.
- Stand alone: The 300 is the best CAM Selector for stand alone operation because it includes an HDMI to monitor the USB3 output via HDMI. Of course you can also use it as an input to either SHARE2 or SHARE2U (Note that the CAM300 USB 3.0 output cannot connect to the SHARE2U USB 2.0 inputs).
- In combination with SHARE2. The inputs to Share2 are HDMI and DVI so the CAM100 with an HDMI output allows two HDMI sources and two USB2.0 sources. In combination with the other DVI input you can create a variety of effects, annotate sources or make your message more interesting.
- In combination with SHARE2U. The inputs to Share2U are HDMI/DVI and USB 2.0 so the CAM100 with an HDMI output allows two HDMI sources and three USB2.0 sources.

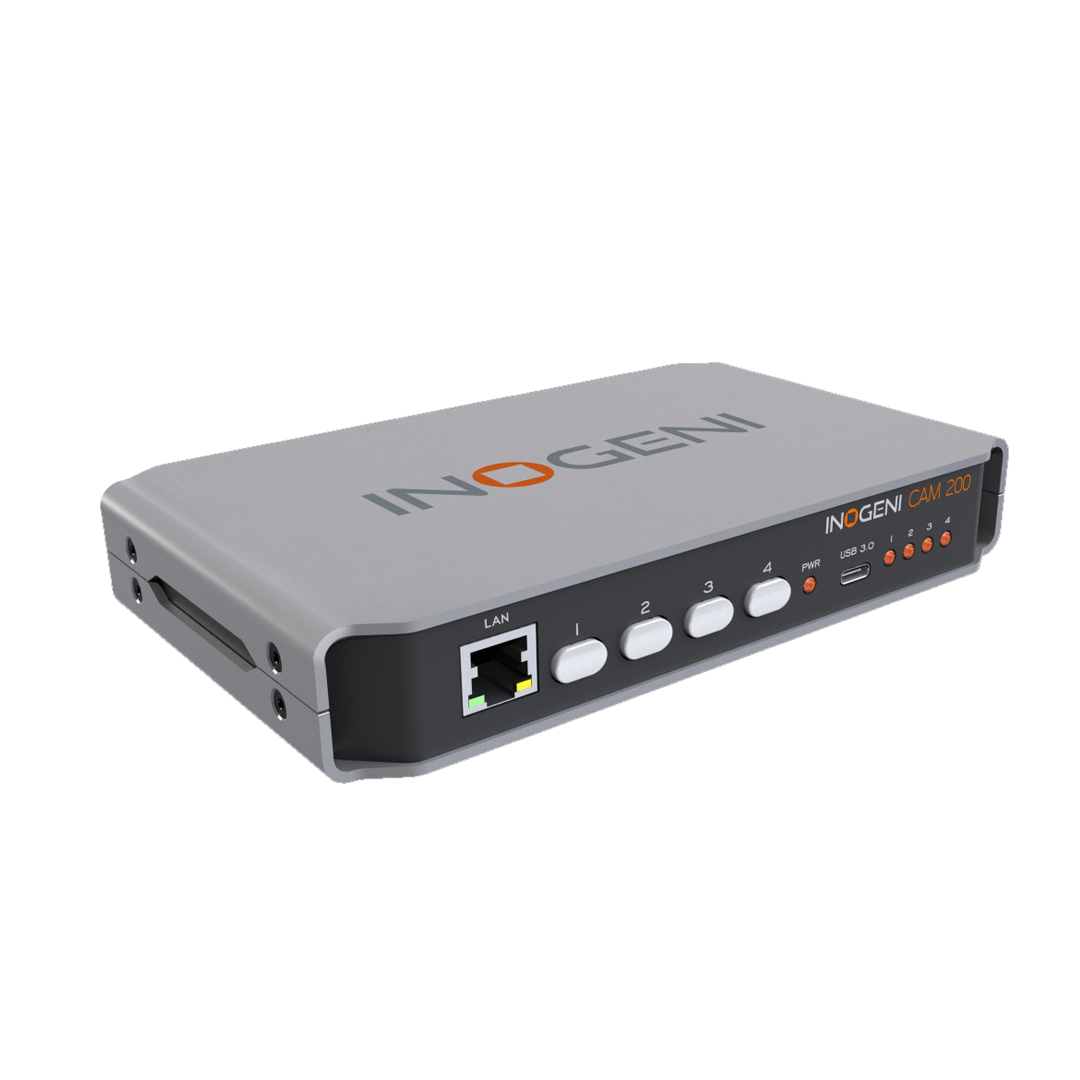

4:1 3xHDMI & 1xVGA Camera selector Smooth video switch
USB 3.0 output
USB 3.0 uncompressed 1080p60
HDMI embedded PCM
Line-in for VGA input
USB 3.0 PCM stereo, audio follow input.
Video Selection Response Time
Less than 0.2 sec.
Motherboard & Laptop
Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic
Cameras and camcorders with an HDMI, DVI or VGA output
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Power supply, USB 3.0 cable, RS-232 terminal bock adapter.
Dimensions & Weight
(L x W x H)
184 x 114 x 38 mm
7 1/4'' x 4 1/2'' x 1 1/4''
1.0 pounds (469 g)
0° to 45° C
32° to 113° F
-40° to 105° C
-40° to 221° F
0% to 90% non-condensing
12V, 1.2A. power supply included
* USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 2.0 cameras that support MJPEG or H264 codecs.
