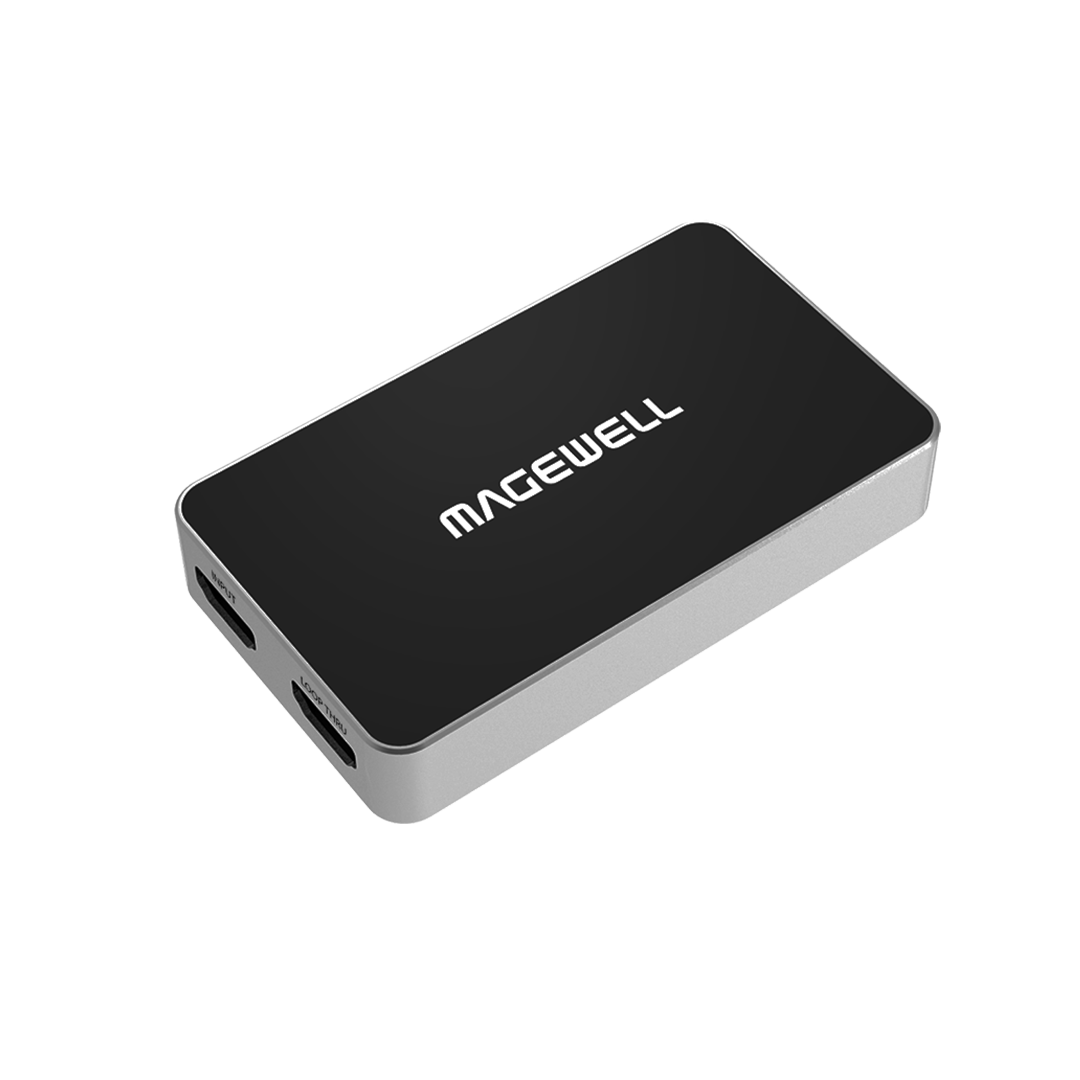

Magewell® USB Capture HDMI Plus


One channel 2K capture device
Part number: 32040

Capture HDMI + embedded audio
Loop-through HDMI signal
Audio input via mic
Extract HDMI embedded audio output via headphones
Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

Magewell® USB Capture HDMI Plus


Magewell® USB Capture HDMI Plus

349.00

One channel 2K capture device
Part number: 32040

Capture HDMI + embedded audio
Loop-through HDMI signal
Audio input via mic
Extract HDMI embedded audio output via headphones
Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

Quantity:
Add To Cart

Interface



Tech Specs

Tech Documents

Supported OS

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (Ubuntu 12.04–16.10, CentOS 7)
OS X 10.9–10.11
macOS 10.12
Chrome OS

Supported APIs

Windows

  • DirectShow
  • Wave API/DirectSound/WASAPI

Linux

  • V4L2
  • ALSA

OS X/macOS

  • QuickTime
  • AV Foundation

Supported Software

VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software

Input Interfaces

HDMI

  • DVI-D 1.0
  • HDMI 1.4

3.5mm audio jack

  • Microphone interface

Output Interfaces

USB 3.0

  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1

3.5mm audio jack

  • headphones interface

HDMI

  • HDMI loop-through interface

Input Features

Support for input video resolutions up to 4096×2160

HDMI Specific Features

297MHz HDMIreceiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction ofAVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input signals
For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing
For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal resolution will be reduced to 1/2 for capturing
Support for 2 channel ISC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

Analog Audio Features

Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.

Video Capture format

Support for capture resolutions up to 2048×2160

Support for output frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB 3.0 controller are as follows.)

  • 1920×1080 YUY2 (up to 70fps)
  • 1920×1080 RGB24 (up to 60fps)

Support for YUY2 & UYVY4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture format can be set using USB Capture Utility.

Video Processing Features

Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling

Video de-interlacing

  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only

Video aspect ratio conversion

  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion
Vertical flip and mirror

Multiple devices on one computer

Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK

The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

Firmware Upgrade

Multiple devices in one system can be upgraded simultaneously

LED Indicator

Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

Form Factor

98.1mm (L) x 56.8mm (W) x 17mm (H)

Power Consumption

5V max current: 900mA
max power consumption:~4.5W

Working Environment

Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
