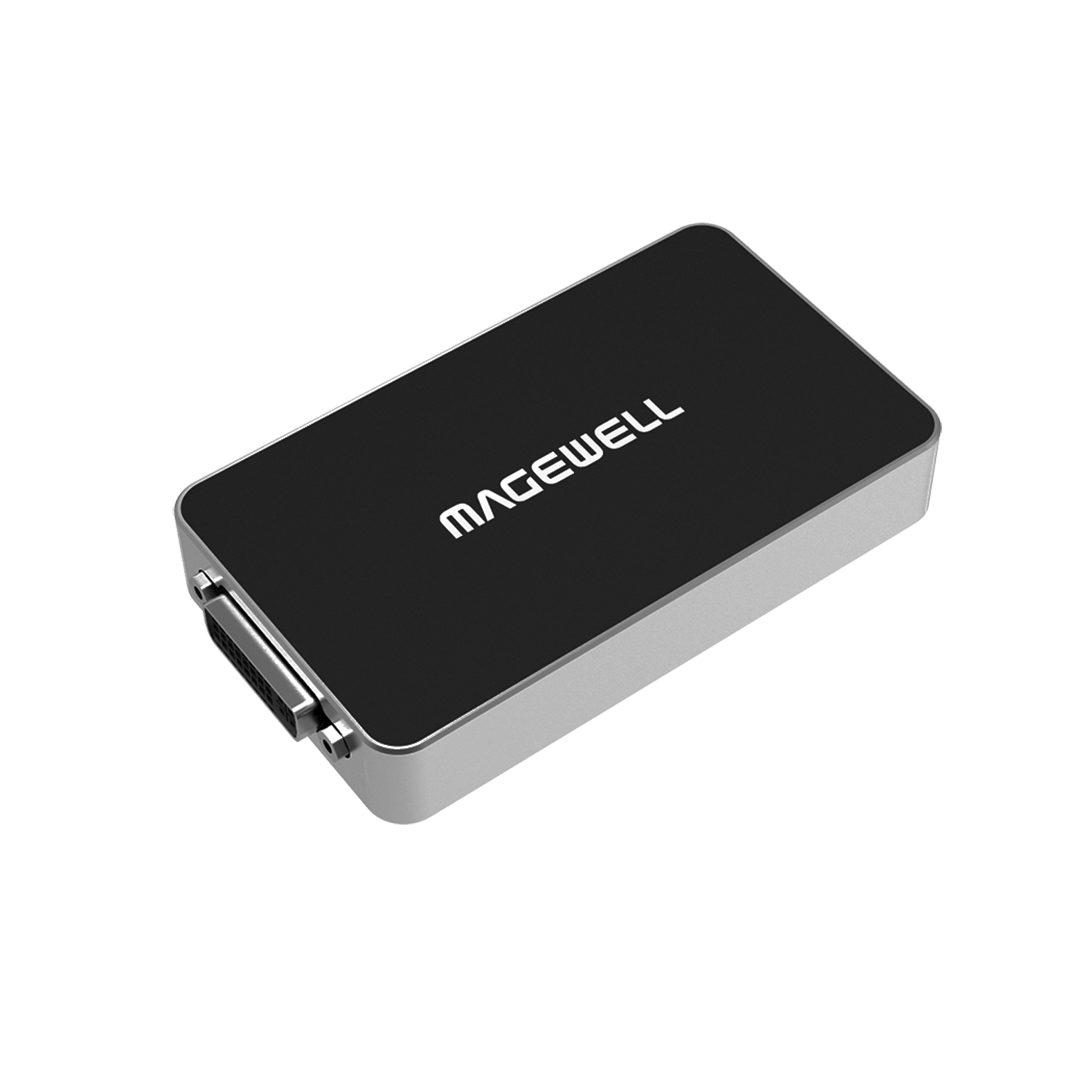

Magewell® USB Capture DVI Plus


Magewell® USB Capture DVI Plus

399.00

One channel HD capture card
Part number: 32080

Captures one of the following
DVI + audio
VGA + audio
Component + audio
HDMI + embedded audio
Audio input via Line in
Extract HDMI embedded audio output via Line out

Quantity:
Add To Cart

Interface



Tech Specs

Tech Documents

Supported OS

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (Ubuntu 12.04–16.10, CentOS 7)
OS X 10.9–10.11
macOS 10.12
Chrome OS

Supported APIs

Windows

  • DirectShow
  • Wave API/DirectSound/WASAPI

Linux

  • V4L2
  • ALSA

OS X/macOS

  • QuickTime
  • AV Foundation

Supported Software

VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software

Input Interfaces

DVI-I

  • DVI 1.0
  • HDMI 1.4a (via breakout cable)
  • VGA (via DVI-to-VGA convertor)
  • Component (via breakout cable)

3.5mm audio jack

  • unbalanced Line In interface

Output Interfaces

USB 3.0

  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1

3.5mm audio jack

  • unbalanced Line Out interface

Input Features

Auto scan of video input sources when there is no signal input to the currently selected input source
Manual selection of video input source
Auto selection of linked (embedded) audio input source when the video input source changes
Manual selection of audio input source
Support for input video resolutions up to 2048×2160

VGA& Component Specific Features

12-bitADC
Support for RGB & YCbCr (YUV) color formats
Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
Support for DMT, CEA, CVT, GTF video timings
Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT recommended)
Auto detection of RGB & YCbCr color formats
Auto or manual sampling phase adjustment
Auto horizontal alignment
Support for customized video timings
Support for customized video resolutions for CVT/GTF timings

HDMI Specific Features

225MHz HDMIreceiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction ofAVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 2-channel ISC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

Analog Audio Features

Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of stereo analog audio from Line In (3.5 mm stereo mini-jack socket)
Video Capture format
Support for capture resolutions up to 2048×2160

Support for output frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB 3.0 controller are as follows.)

  • 1920×1080 YUY2 (up to 75fps)
  • 1920×1080 RGB24 (up to 60fps)

Support for YUY2 & UYVY4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture format can be set using USB Capture Utility.

Video Processing Features

Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling

Video de-interlacing

  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only

Video aspect ratio conversion

  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion
Vertical flip and mirror

Multiple devices on one computer

Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK

The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

Firmware Upgrade

Multiple devices in one system can be upgraded simultaneously

LED Indicator

Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

Form Factor

101.5mm (L) x 56.8mm (W) x 17mm (H)

Power Consumption

5V max current: 600mA
max power consumption:~3W

Working Environment

Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
