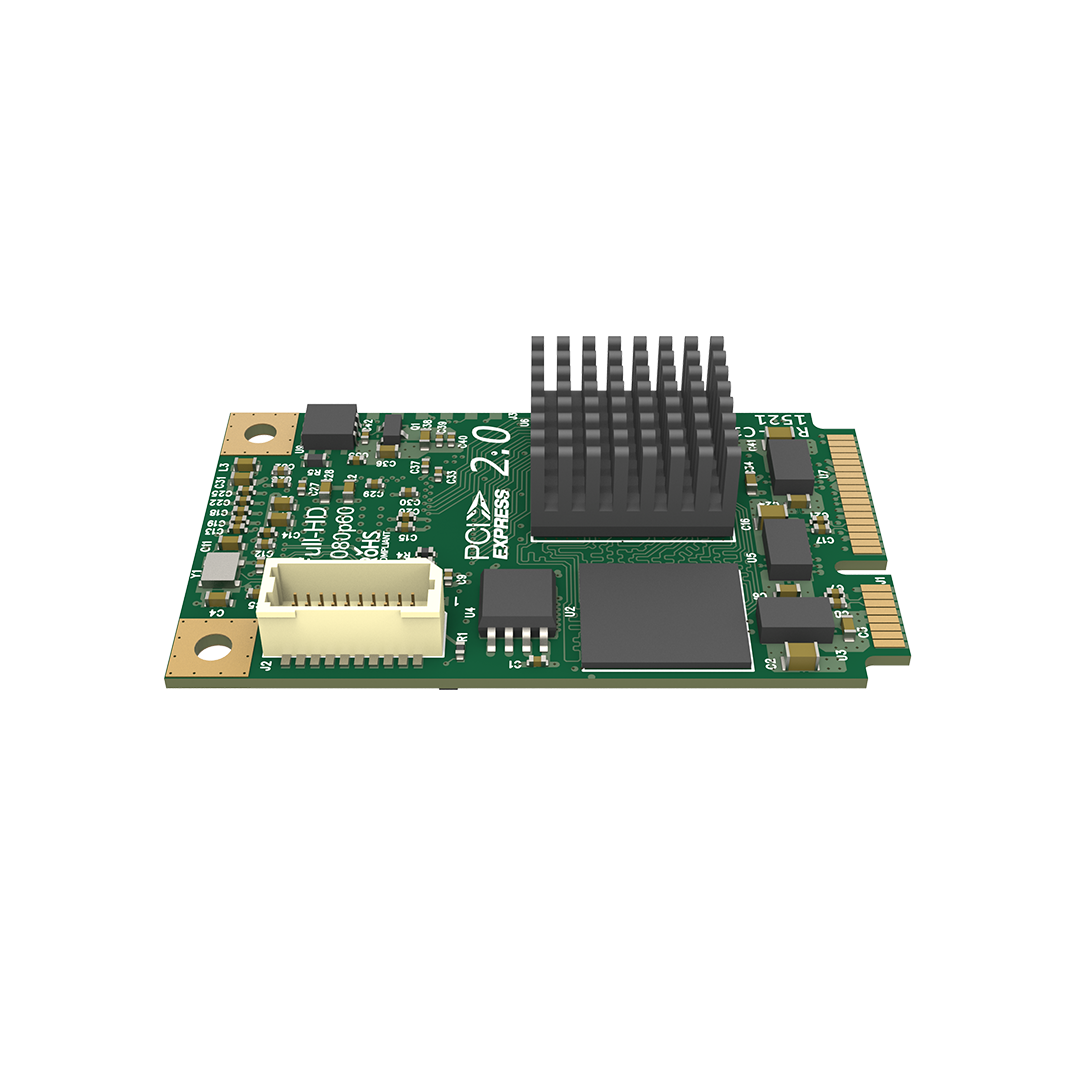

Magewell® Pro Capture Mini HDMI


Magewell® Pro Capture Mini HDMI

239.00

One channel HD capture card
Part number:11110

HDMI + embedded audio

Quantity:
Add To Cart

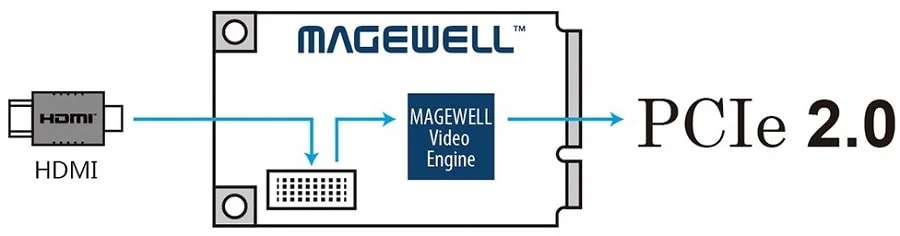

Interface



Tech Specs

Tech Documents

Supported OS

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2 , supports x86, x64 & arm architecture)
Mac OS X

Supported APIs

Windows

  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI

Linux

  • V4L2
  • ALSA

Supported Software

VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

JST SHD 20pin connector

  • DVI 1.0
  • HDMI 1.4a

Output Interfaces

PCIe Gen2 x1

Input Features

Support for input video resolutions up to 2048×2048 pixels

HDMI Specific Features

225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code

Video Output Formats

Support for output image resolutions up to 2048×2048 pixels
Support for output frame rates up to 144fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
Support for 4:2:0 8-bit output formats: NV12, I420, YV12
Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit output formats: V410, Y410
More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling

Video de-interlacing

  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only

Video aspect ratio conversion

  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion

Video OSD composition

  • Support for PNG OSD image (up to 2048×2048)
  • Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

Support for multiple cards plugged to one system

Multiple Output Streams

Unlimited output streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Ultra Low Latency Support

Latency of 64 video lines
Partial notification mode in SDK

Timestamp & A/V Synchronization

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

~400MB/s per channel DMA bandwidth in PCIe 2.0 system
~200MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

SDK

Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

All options can be controled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

Form Factor

Mini PCIe Add-on Card
30mm x 51mm

Accessories

SHD to HDMI type A breakout

Power Consumption

Max current at 3.3V ~1.2 A
Max power consumption ~4.0 W

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C

Relative Humidity: 5% to 90% non-condensing
