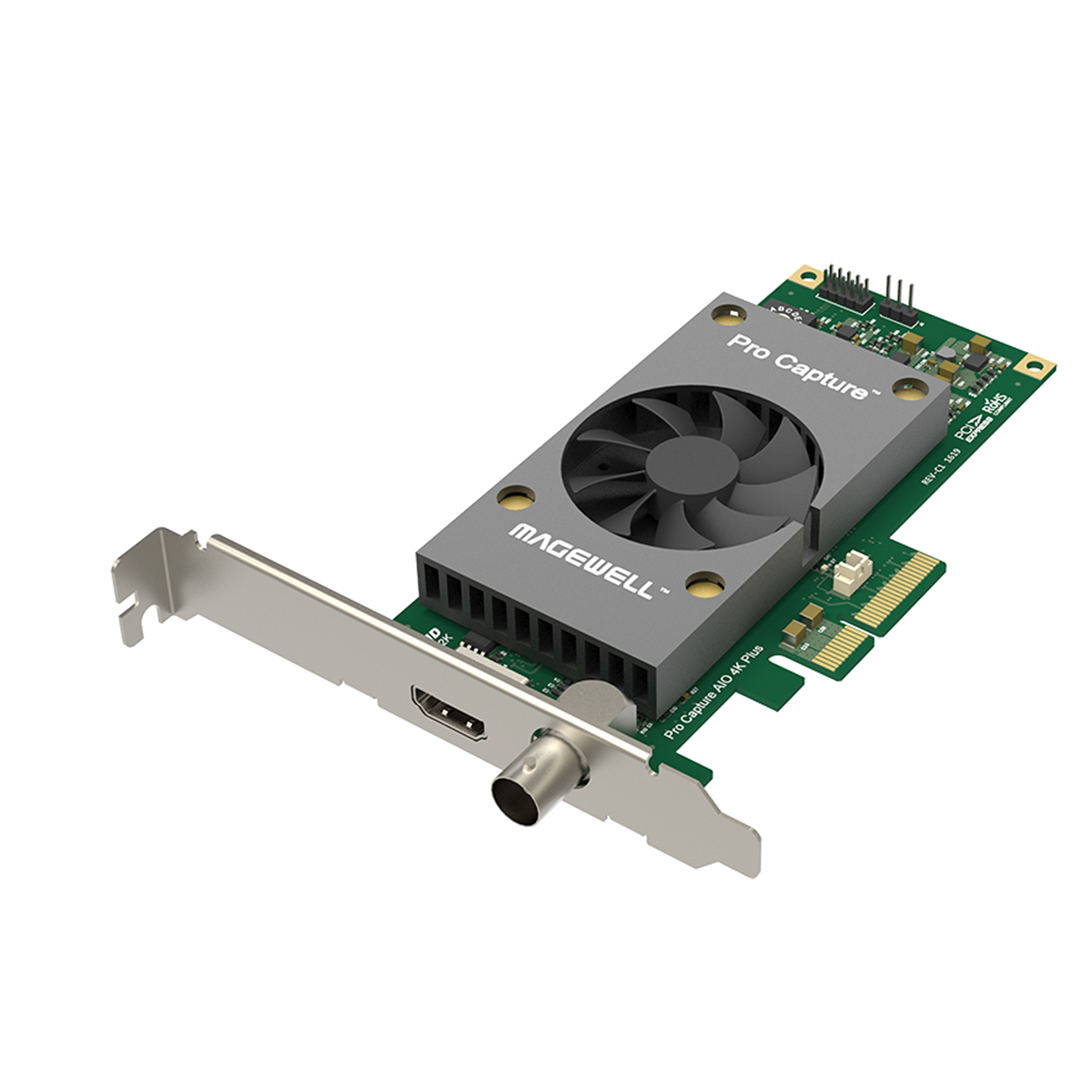

Magewell® Pro Capture AIO 4K Plus


Magewell® Pro Capture AIO 4K Plus

479.00

One channel UHD capture card
Part number: 11140
Captures one of the following
SDI + embedded audio
HDMI + embedded audio

Quantity:
Add To Cart

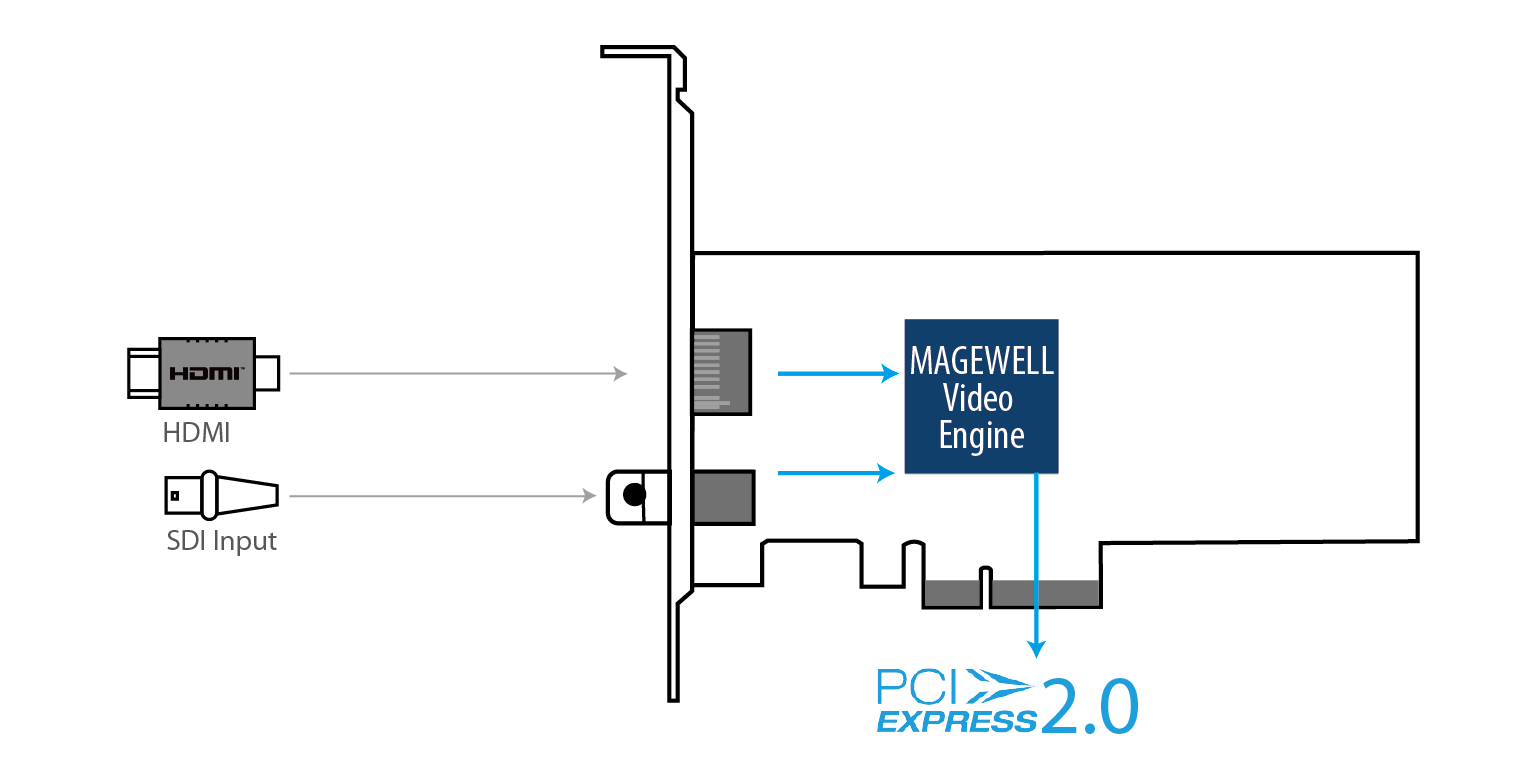

Interface



Tech Specs

Tech Documents

Supported OS

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2 , supports x86, x64 & arm architecture)
OS X 10.9–10.11
macOS 10.12

Supported APIs

Windows

  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI

Supported Software

VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

HDMI

  • DVI-D 1.0
  • HDMI 2.0

BNC

  • SD/HD/3G/ 6G SDI

Output Interfaces

PCIe Gen2 x4

Input Features

Auto scan of video input sources when there is no signal input to the currently selected input source
Manual selection of video input source
Auto selection of linked (embedded) audio input source when the video input source changes
Manual selection of audio input source
Support for standard crossbar based on video input source selection
Support for input video resolutions up to 4096×2160 pixels

HDMI Specific Features

594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

SDI Specific Features

ntegrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
Support for 2K (2048×1080) & 4K (4096×2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec)
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:

  • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
  • YCbCr 4:4:4 10-bit: captured as 4:2:2
  • RGB 4:4:4: R/B sub-sampled

Video Output Formats

Support for output image resolutions up to 4096×2160 pixels
Support for output frame rates up to 144fps. (Actual output frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit output formats: NV12, I420, YV12
Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit output formats: V410, Y410
More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~720Mpixels/s processing bandwidth
Full 10-bit video processing
Video cropping
Video scaling

Video de-interlacing

  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only

Video aspect ratio conversion

  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion

Video OSD composition

  • Support for PNG OSD image (up to 4069×2160)
  • Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture AIO 4K+” when rotary switch is set to 1,and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Output Streams

Unlimited output streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
Latency of 64 video lines
Partial notification mode in SDK

Timestamp &A/V Synchronization

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

SDK

Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

All options can be controled by three levels of registry key: global level, product level and device level
Video,Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

LED Indicator

Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

Form Factor

Low profile PCIe x4 Add-on Card
140mm x 68.88mm (without PCI bracket)

Power Consumption

Max current at 12V TBD
Max current at 3.3V TBD

Max power consumption TBD

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
