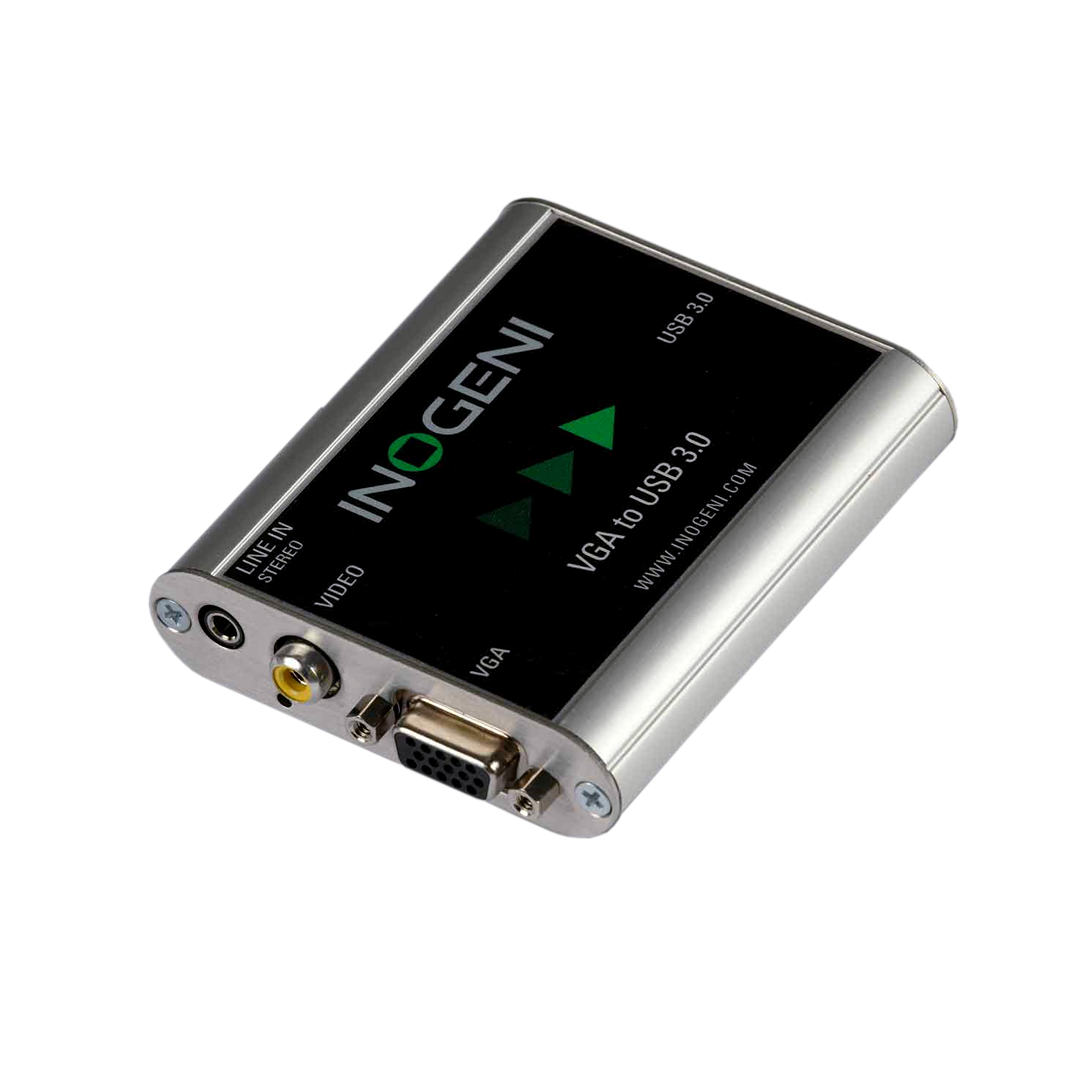

Inogeni® VGA to USB 3.0


Inogeni® VGA to USB 3.0

0.00

VGA to USB 3.0

Quantity:
Add To Cart


Features

The INOGENI VGA2USB3 Converter requires no drivers and works on all motherboards and USB 3.0 chipsets.

It is the most easy and reliable tool to capture uncompressed video with audio from your VGA, Component (analog) or CVBS output into your PC for recording, editing, videoconferencing and streaming applications. The INOGENI VGA2USB3 Converter accepts SD and HDTV video formats, up to 1080p60, and most computer graphic formats.

Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. The converter supports 1080p resolutions up to 60 fps. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The line level stereo analog audio input is output as two-channel LPCM. A USB 3.0 cable comes included.



  • VGA/Component/CVBS and audio capture to USB3.0.
  • Direct Show Compatible.
  • Supports 1080p, 720p, 480p, 576p,1600x1200, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, NTSC, PAL and more at up to 60 fps.
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion.
  • Customizable video processing functions.
  • Image controls: Brightness, contrast, saturation and hue settings.
  • Supports multiple devices on the same PC.
  • Powered from USB a 3.0 port.
  • Compatible with Windows, OSX, Linux and Android.
  • A USB 3.0 cable is included.


Tech Specs

Tech Documents

Input

Connector
1 x HD15 (VGA/Component)
1 x RCA (NTSC/PAL)
1 x 3.5mm jack (line stereo audio)

Video Resolution
1080p, 720p, 480p, 576p, 1600x1200, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, NTSC, PAL and more.

Frame Rates
Up to 60 Hz, all formats

Color Space
RGB

Sampling Rate
165 MHz

Embedded Audio
Analog stereo, line level

HDCP Copy Protection
Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources.

Output

Connector
1 x USB 3.0

Color Space
YCbCr (YUY2) 4:2:2 8-bit

Video Scaler
Automatic hardware based

Color Space Conversion
Automatic hardware based

Sampling Conversion
Automatic hardware based

Frame Rate Conversion
Automatic hardware based

Audio
2-channel LPCM audio 48 kHz

Dimensions & Weight

(L x W x H)
81 x 73.5 x 19 mm
3.2” x 2.9” x 0.75”
126g

Operating Temperature

0° to 45° C
32° to 113° F

Storage Temperature

-40° to 105° C
-40° to 221° F

Relative Humidity

0% to 90% non-condensing

USB3 Power

5V, 680 mA
