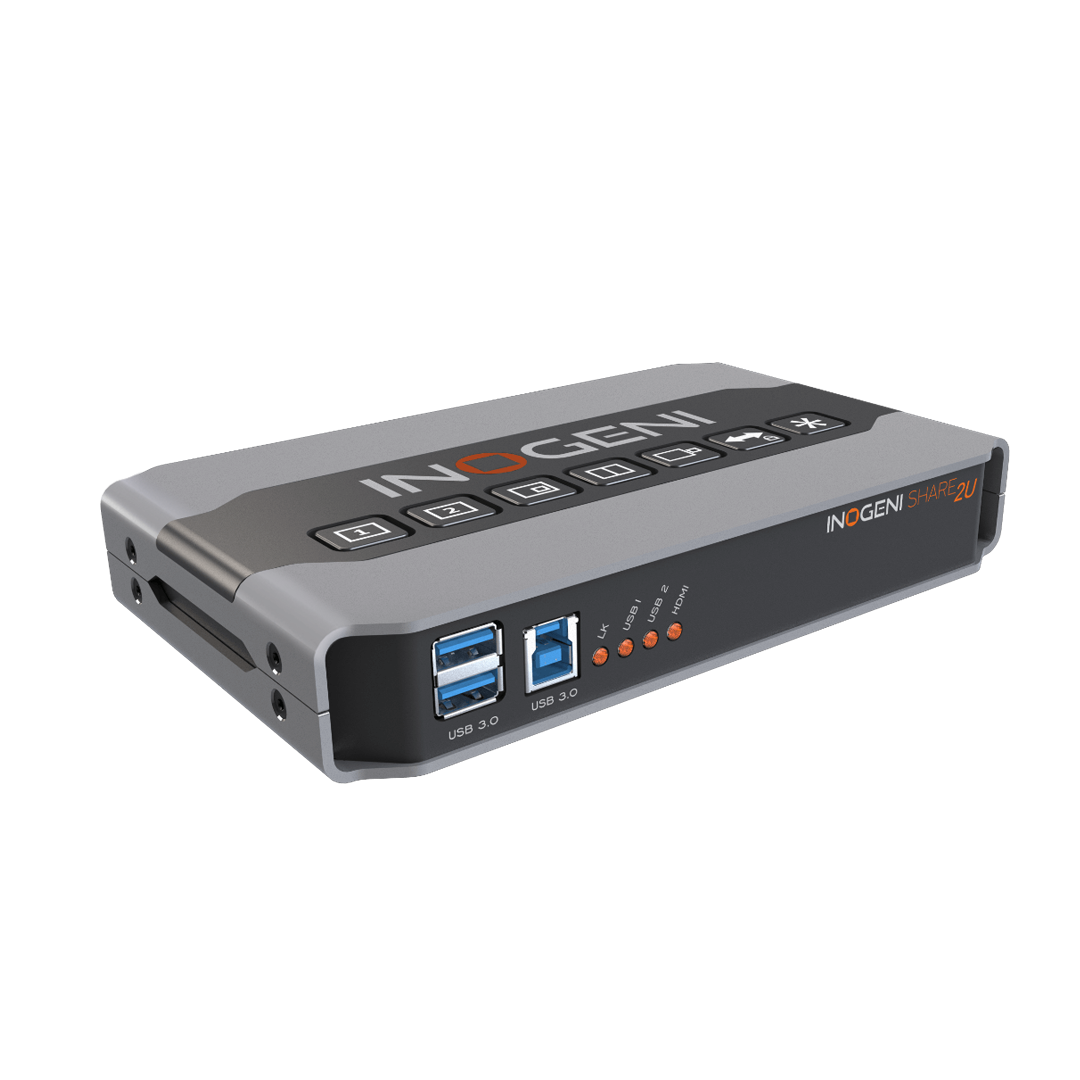

Inogeni® Share2U


Inogeni® Share2U

0.00

Dual USB Video to USB 3.0 Multi I/O Capture

Quantity:
Add To Cart

Features

Easy, No Drivers, No Setup! Versatile! Compatible with all Apps!

OPTIMIZE your video collaboration and webcast with two cameras.
Works with Skype®, Zoom®, Webex®, GoToMeeting®, Hangouts®, etc.
Reduces hardware complexity and connections to your computer.

The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually.You can use the Mixer feature of the SHARE 2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

  • Mixer feature: Hardware mixer into a single USB 3.0 interface
  • Control interface: LAN, RS-232, USB
  • Local and remote keypad.
  • USB 2.0 cameras and HDMI capture
  • HDMI output for preview
  • Line level stereo audio support
  • Digital Fluid technology: Internal frame buffers maximize frame rate with any host
  • Hardware-based color space and sampling conversion
  • Compatible with Windows, OSX and Linux


Feature Summary

Simultaneous capture and mix of 2x USB2 signals + Audio into one 1080P60 USB3 signal.

Video Input 1

1 x USB 2.0 camera
MJPEG or H264 (*)

Depends on the camera specifications
Supported USB 2.0 cameras

Video Input 2

1 x USB 2.0 camera
MJPEG or H264 (*)

Depends on the camera specifications
Supported USB 2.0 cameras
OR
1 x HDMI
1080p30, 720p60 and 640x480p60

Frame Rates

Up to 1920x1080p, 30Hz

Color Space

USB : RGB
HDMI : RGB, YCbCr 4:4:4 and 4:2:2

Analog Audio I/O

Analog stereo, line level, 3.5mm jack.

Audio Input

2-channel LPCM 48kHz audio from line input or embedded in HDMI.

HDCP Copy Protection

The device will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

Camera Control

RS-232 on terminal block for VISCA control.

Mixer Control

The Mixer feature can be controlled by the following interfaces: HID, RS-232, keypad and INOGENI REMOTE

Connector

1 x USB 3.0
1 x HDMI - up to 1080p60

Color Space

YCbCr (YUY2) 4:2:2 8-bit

Video Scaler, Color Space Conversion, Sampling & Frame Rate Conversion

Automatic hardware based

USB Expansion

Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Maximum USB Bandwidth

No USB Bandwidth limitation.

Operating Systems

NO driver installation necessary!
Windows 7 and above (32/64-bit)
Linux (kernel v2.6.38) and above
OSX
Android

Minimal Host Requirements

USB 3.0 port
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Motherboard

Compatible with all motherboards. Intel, Renesas, ASMedia and Fresco Logic

Cameras Supported

Cameras and camcorders with an HDMI, DVI, VGA or CVBS output

Software Compatibility

UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.

Adapters/Cables included

Power supply, USB 3.0 cable, RS-232 terminal bock adapter.

Dimensions & Weight

(L x W x H)
185 x 112 x 30.5 mm
7.3” x 4.4” x 1.2”
1.18 pounds (537 g)

Operating Temperature

0° to 45° C
32° to 113° F

Storage Temperature

-40° to 105° C
-40° to 221° F

Relative Humidity

0% to 90% non-condensing

Power

12V, 700mA. Power supply included

* USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 2.0 cameras that support MJPEG or H264 codecs.
