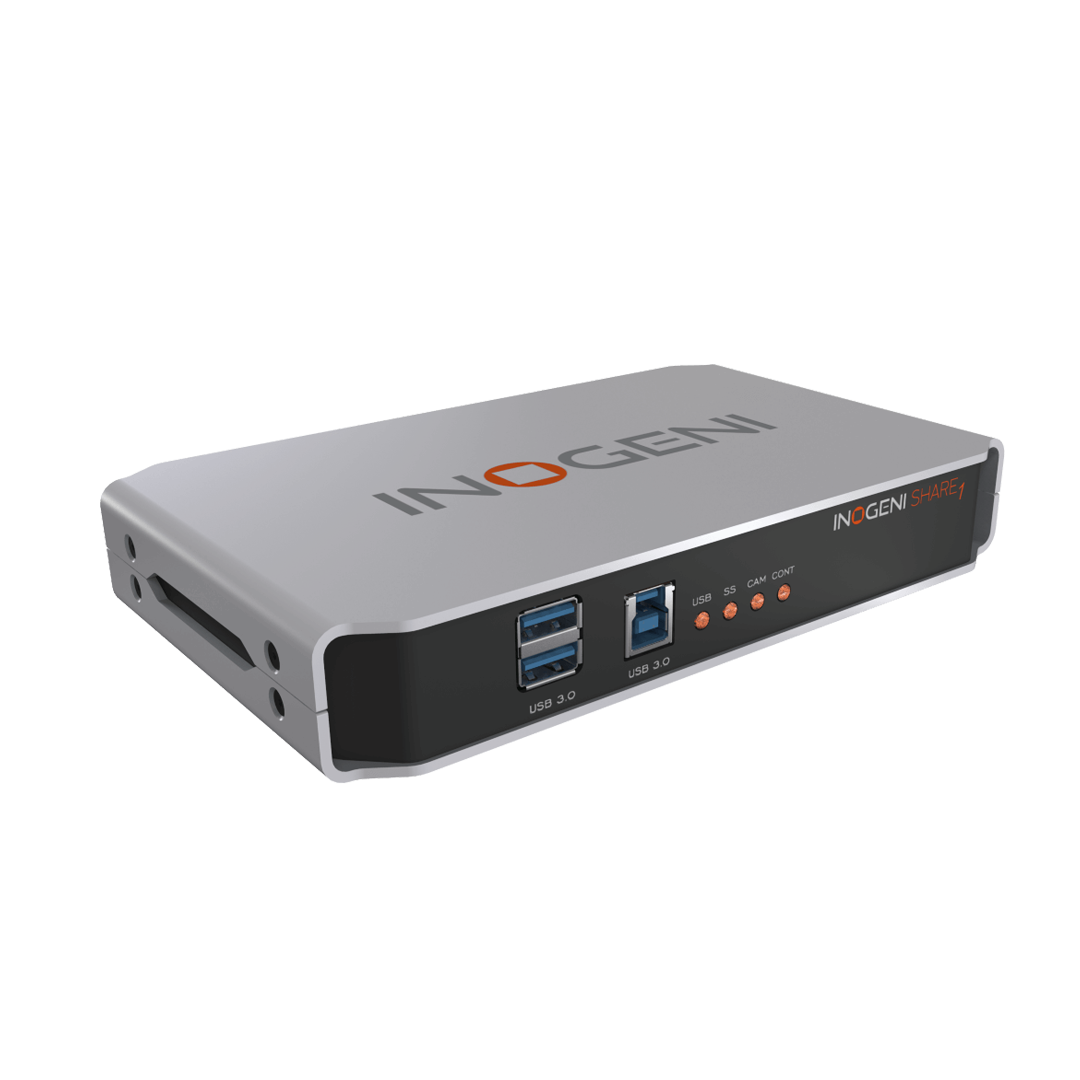

Inogeni® Share1

Inogeni® Share1

0.00

Dual Video to USB 3.0 Multi I/O Capture

Quantity:
Add To Cart

Features

Reduces hardware complexity and connections to your computer. Easy, No Drivers, No Setup! Versatile! Compatible with all Apps!

Facilitate your video capture over USB 3.0 for two cameras and with versatile I/Os.
Works with vMix, Wirecast, Panopto etc. and all apps supporting two or more video input devices.

  • Simultaneous capture of two uncompressed HD video streams into one single USB 3.0 link.
  • HDMI, DVI, VGA or CVBS video input connectors.
  • Line level stereo audio support.
  • Digital Fluid technology: Internal frame buffers maximize frame rate with any host.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion.
  • Customizable video processing functions.
  • Image controls: Brightness, contrast, saturation and hue settings.
  • Supports multiple devices on the same host.
  • Compatible with Windows and Linux.


Feature Summary

Dual Video to USB 3.0 Multi I/O Capture. FACILITATE your video capture over USB 3.0 for two cameras and with versatile I/Os. Works with vMix, Wirecast, Panopto etc.and all apps supporting two or more video input devices.

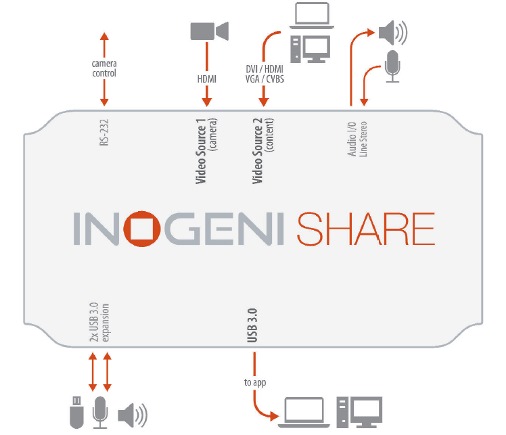

Video Input 1

1 x HDMI
1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480

Video Input 2

1 x DVI-I (Digital + Analog)
DVI: 1080p, 1080i, 720p, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
VGA: 1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200, 1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480
Component: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i
1 x CVBS - 480i, 576iHDMI Note: You may use a HDMI to DVI adapter and have two HDMI inputs.

Frame Rates

Up to 60 Hz, all formats

Color Space

RGB, YCbCr, 4:4:4, and 4:2:2

Analog Audio I/O

Analog stereo, line level, 3.5mm jack.

Audio Input

2-channel LPCM 48kHz audio from line input or embedded in HDMI

HDCP Copy Protection

The device will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

Camera Control

RS-232 port on RJ-45 connector for RS-232 or VISCA control. Requires installation of COM port driver.

Mixer Control

The Mixer feature can be controlled by the following interfaces: HID, RS-232, keypad and INOGENI REMOTE

Connector

1 x USB 3.0

Color Space

YCbCr (YUY2) 4:2:2 8-bit

Video Scaler, Color Space Conversion, Sampling & Frame Rate Conversion

Automatic hardware based

USB Expansion

Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Maximum USB Bandwidth

Because of USB bandwidth limitation, you cannot stream simultaneously two 1080p60 videos over USB. However, for example, these combinations will work:

  • Input 1 at 1080p50 and Input 2 at 1080p30.
  • Both Inputs at HD resolutions, such as 1080i60, 1080p30 or 720p60.
  • Input 1 at 1080p60 and Input 2 at 1080p23.
  • And all other combinations at lower resolution or frame rate.
  • The internal scaler can be used to reduce the resolution and frame rate of the input if necessary

Operating Systems

NO driver installation necessary!
Windows 7 and above (32/64-bit)
Linux (kernel v2.6.38) and above
Android

Minimal Host Requirements

USB 3.0 port
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Motherboard

Compatible with all motherboards. Intel, Renesas, ASMedia and Fresco Logic

Cameras Supported

Cameras and camcorders with an HDMI, DVI, VGA or CVBS output

Software Compatibility

UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.

Adapters/Cables included

Power supply, USB 3.0 Type-C cable, RS-232 terminal bock adapter.

Dimensions & Weight

(L x W x H)
185 x 112 x 30.5 mm
7.3” x 4.4” x 1.2”

Operating Temperature

0° to 45° C
32° to 113° F

Storage Temperature

-40° to 105° C
-40° to 221° F

Relative Humidity

0% to 90% non-condensing

Power

12V, 700mA. Power supply included

* USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 2.0 cameras that support MJPEG or H264 codecs.
