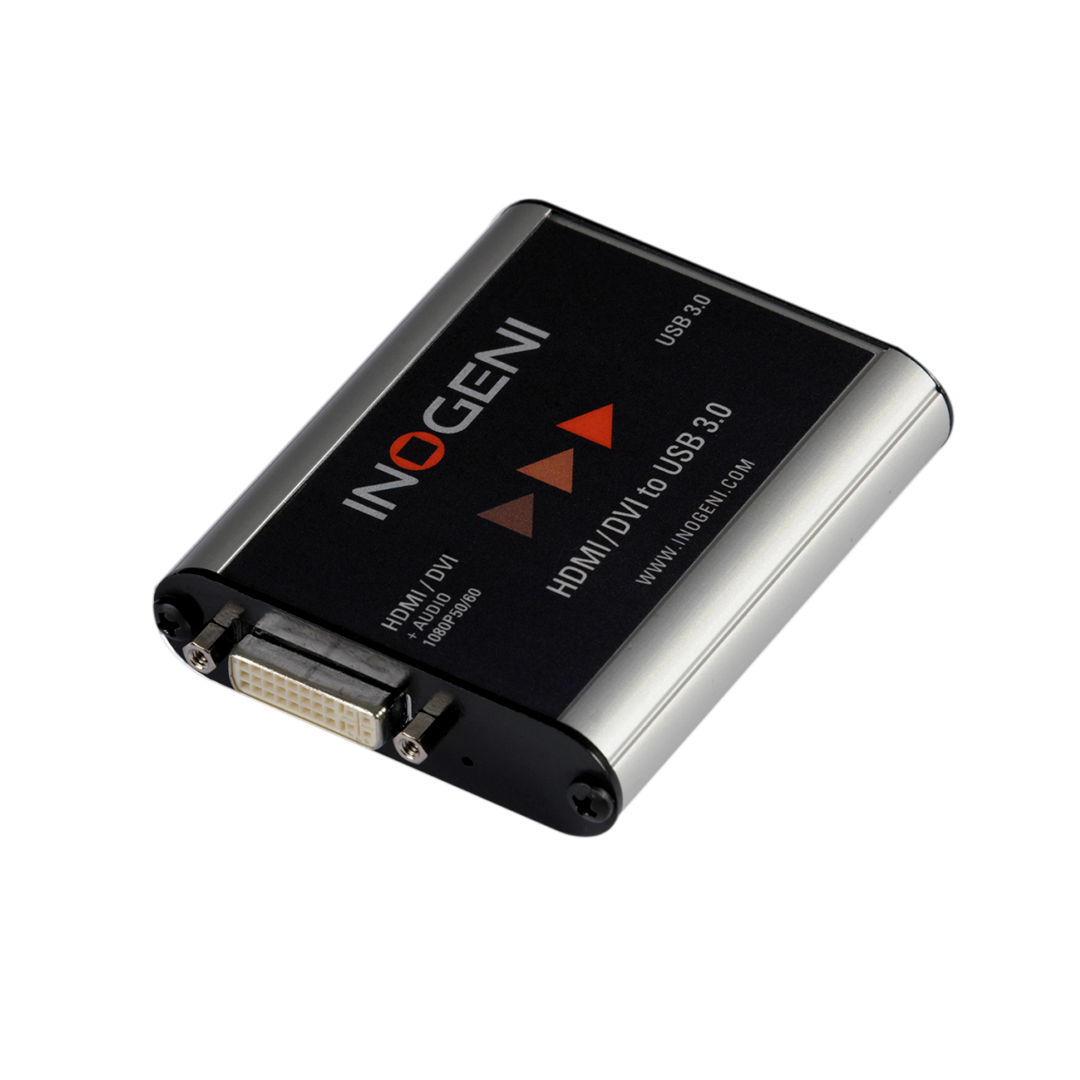

Inogeni® HDMI/DVI to USB 3.0


Inogeni® HDMI/DVI to USB 3.0

0.00

HDMI/DVI to USB 3.0

Quantity:
Add To Cart


Features

The INOGENI DVIUSB Converter requires no drivers and works on all motherboards and USB 3.0 chipsets. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI or DVI-D output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux, and Android operating systems. The INOGENI DVIUSB features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1080p60, as well as most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. The DVIUSB supports 1080p resolutions up to 60 fps.



  • HDMI/DVI-D capture to USB3.0.
  • Supports 1080p, 1080i, 720p, 480p, and 576p video formats.
  • Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats up to 1080p at 60 fps.
  • All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0.
  • HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM.
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion.
  • Customizable video processing functions
  • Image controls: Brightness, contrast, saturation and hue settings.
  • Supports multiple devices on the same PC.
  • Powered from USB 3.0 port.
  • Compatible with Windows, OSX, Linux and Android.
  • This model cannot decode analog video.
  • A USB 3.0 cable and DVI to HDMI adapter are included.


Tech Specs

Tech Documents

Input

Connector
1 x DVI-D (with HDMI adapter included)

Video Resolution
1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480

Frame Rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions.

Color Space
RGB, YCbCr, 4:4:4, and 4:2:2

Sampling Rate
225 MHz

Embedded Audio
Ch 1&2 48kHz LPCM

HDCP Copy Protection
Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources.

Output

Connector
1 x USB 3.0

Color Space
YCbCr (YUY2) 4:2:2 8-bit

Video Scaler
Automatic hardware based

Color Space Conversion
Automatic hardware based

Sampling Conversion
Automatic hardware based

Frame Rate Conversion
Automatic hardware based

Audio
2-channel LPCM audio from HDMI

Compatibility

Operating System
NO driver installation necessary
Windows 7 and above (32/64-bit)
OSX 10.10 and above
Linux (kernel v2.6.38) and above
Android

Host Requirements
USB 3.0 port

Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

Cameras Supported
Cameras and camcorders with an HDMI output

Software Compatibility
UVC-compliant
Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation.

Dimensions & Weight

(L x W x H)
81 x 73.5 x 19 mm
3.2” x 2.9” x 0.75”
120g

Operating Temperature

0° to 45° C
32° to 113° F

Storage Temperature

-40° to 105° C
-40° to 221° F

Relative Humidity

0% to 90% non-condensing

USB3 Power

5V, 525 mA
