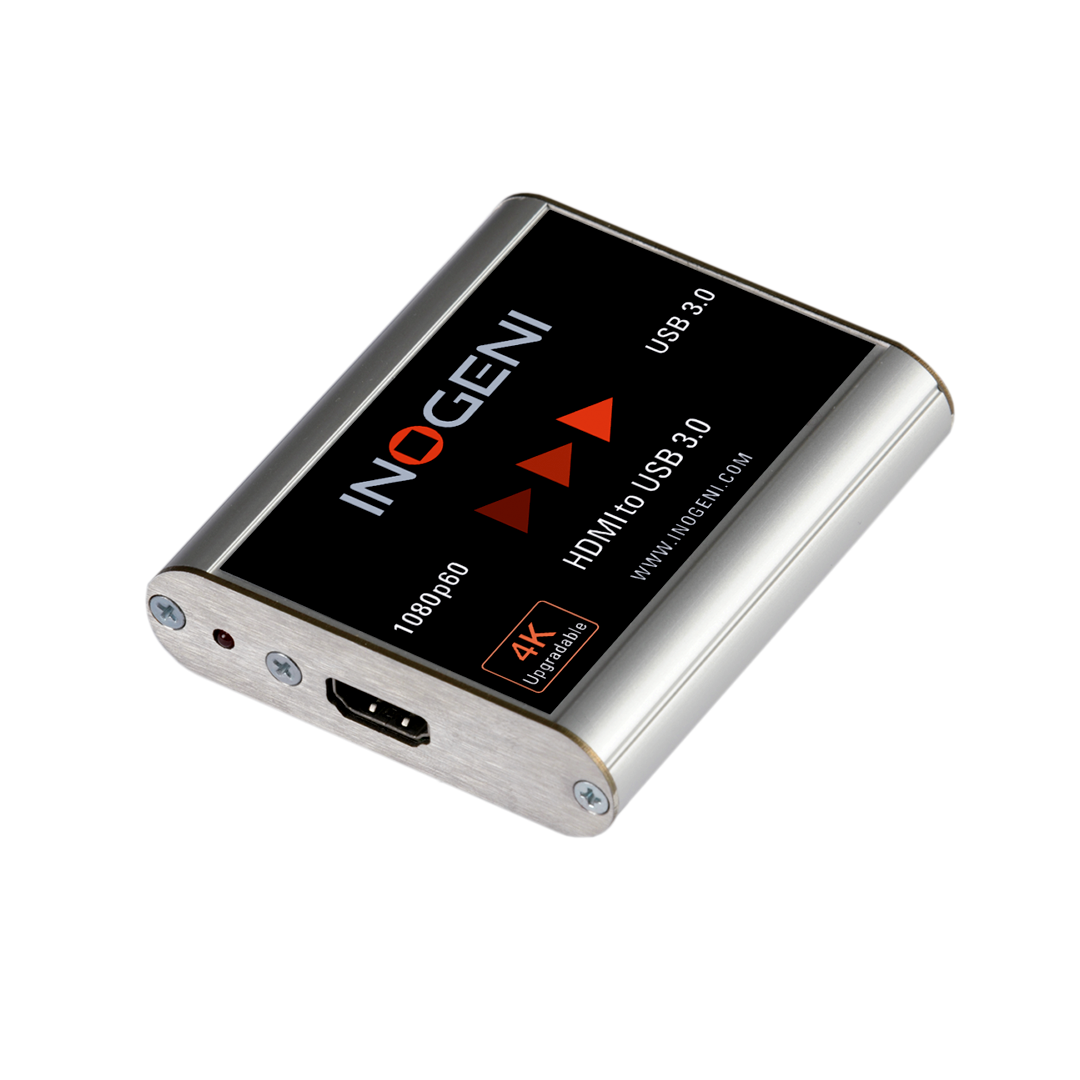

Inogeni® 4K Ultra HD HDMI to USB 3.0


Inogeni® 4K Ultra HD HDMI to USB 3.0

0.00

4K Ultra HD HDMI to USB 3.0

Quantity:
Add To Cart


Features

The INOGENI 4K HDMI to USB 3.0 Converter requires no drivers and works on all motherboards and USB 3.0 chipsets. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux, and Android operating systems.

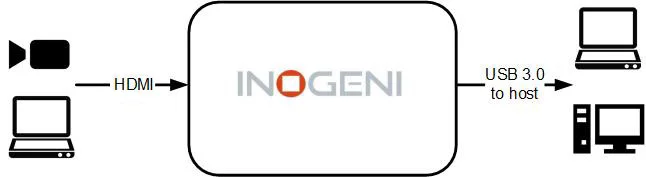

It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to Ultra HD 4K (4096x2160), and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.



  • HDMI capture to USB 3.0
  • Direct Show Compatible
  • Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats.
  • Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats.
  • Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps.
  • HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM.
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.
  • Hardware-based color space and sampling conversion.
  • Automatic scaling and frame rate conversion (UHD up-scaling not supported).
  • Customizable video processing functions.
  • Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K.
  • Supports multiple devices on the same PC.
  • Powered from USB 3.0 port.
  • Compatible with Windows, OSX, Linux and Android.
  • A USB 3.0 cable is included.


Tech Specs

Tech Documents

Input

Connector
1 x HDMI 1.4a

Video Resolution
4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480

Frame Rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.

Color Space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)

Sampling Rate
297 MHz

Embedded Audio
Ch 1&2 48kHz LPCM

HDCP Copy Protection
Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources.

Output

Connector
1 x USB 3.0

Color Space
YUY2 4:2:2 8-bit
NV12 4:2:0 12-bit
YV12 4:2:0 12-bit
I420 4:2:0 12-bit
4K formats can only be transferred into the 4:2:0 pixel formats

Video Scaler
Automatic hardware based

Color Space Conversion
Automatic hardware based

Sampling Conversion
Automatic hardware based

Frame Rate Conversion
Automatic hardware based

Audio
2-channel LPCM audio from HDMI

Compatibility

Operating System
NO driver installation necessary
Windows 7 and above (32/64-bit) OSX 10.10 and above Linux (kernel v2.6.38) and above
Please note that 4K resolutions on the USB side are not supported under OSX
Android

Host Requirements
USB 3.0 port

Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

Cameras Supported
Cameras and camcorders with an HDMI output

Software Compatibility
UVC-compliant. Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation.

Dimensions & Weight

(L x W x H)
81 x 73.5 x 19 mm
3.2” x 2.9” x 0.75”
120g

Operating Temperature

0° to 45° C
32° to 113° F

Storage Temperature

-40° to 105° C
-40° to 221° F

Relative Humidity

0% to 90% non-condensing

USB3 Power

5V, 525 mA
